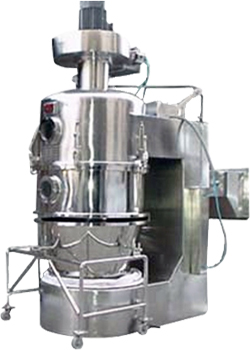

 Fluid Bed Dryer







The precision and easy operations of our Fluid Bed Dryer have named us as the best Manufacturer, Exporter and Supplier in India. The Fluid Bed Dryer, offered by us, is ideal for the rapid and even drying of chemical, pharmaceutical and food products. Our Fluid Bed Dryer is available at the market leading prices.

Salient Features

  • 65% open perforated air distribution plates along with Dutch weave mesh
  • On line sampling Port
  • 2.5kg. to 500kg. batch capacity
  • Top Spry Granulation
  • Explosion relief disc
  • All contact parts are S.S. 316 as per GMP Standard
  • Uniform Drying at low temperature
  • Intrinsically safe earthing system ensures complete elimination of static charge
  • Fan motor unit & Filtration unit can be placed in remote areas
  • Heating mode electrical / steam / thermic fluid
  • Top mounted pneumatic cylinder (directly coupled ) for shaking (without wire rope system)
  • Minimum handling more Hygienic
  • Pneumatically operated inflatable seals provided for filter bag and product container sealing with pressure switches & FRL to ensure fail safe operation

Safety

  • Solid Flow monitor
  • To prevent the product losses due to rupture of filter bag
  • Ensures complete elimination of static charge
  • Explosion vent provided with rupture disk
  • Positive Earthing Device

Applications

  • Chemicals
  • Pharmaceutical
  • Food products

Documentation

  • Fluid Bed Dryer comes along with all documentation like DQ, IQ, OQ, and FAT as a part of standard procedure

TECHNICAL SPECIFICATIONS

Model SSE FBD 10 SSE FBD 30 SSE FBD 60 SSE FBD 120 SSE FBD 150 SSE FBD 200 SSE FBD 250 SSE FBD 300
Bowl Volume (Liters) 35 110 200 425 500 625 780 925
Batch Size (Kgs) 10-15 30-40 60-75 120-150 150-180 200-230 250-280 300-330
Heating Load : (kw) For Electrical Heating 6 18 36 54* 60* * * *
Approx. steam Consumption Kgs/hr. (Steampressure 3.5 Kg. /cm2) 15 25 50 100 130 170 200 250
Motor (H.P.) 2 5 10 15 20 20 25 30
Drying Temp C* 50-80 50-80 50-80 50-80 50-80 50-80 50-80 50-80
Height H1 (Approx) mm 1600 1900 2200 2550 2600 2800 3000 3100
Height H2 (Approx) mm 2000 2250 3000 3500 3500 3900 4000 4200
Width (Approx) mm 1050 1400 1550 1800 1850 2000 2100 2150
Lenth (Approx) mm 800 1250 1500 1700 1700 2000 2100 2200
