Blenders
Ribbon Blender

Ribbon Blender comprises of a U-shaped horizontal trough and a specially designed Double Helical Ribbon Agitator rotating within. Ribbon Blenders are based on a proven agitator construction that provides a triple mixing action ensuring fast, efficient blending. The dimensions and configuration of the ribbons are carefully balanced to provide a movement of material within the container that avoids dead spots and gives rapid product discharge.

An alternate design is the paddle agitator. The paddles are positioned to move the material in opposing lateral directions as well as radially. The paddle design is generally employed where friable materials are being blended, and when batches as small as 15% of the total capacity are going to be mixed in the blender.

Used For

Pharmaceuticals
Food products
Chemicals
Cosmetic products
Design Highlights

The outer ribbon displaces the material from the ends to the center while the inner ribbon moves the material from the center to the ends. This counter-current action results in homogenous blending
The ribbons rotate at approximately 70 - 100 meters per minute and move the material both radially and laterally to ensure thorough blends in short cycle times
Triple Mixing Action - The Key to Fast, Efficient Blending
As the agitator rotates, the material is tumbled and carried radially around the inside of the blender
The pitch of the outer ribbon moves the material toward the discharge opening
The inner ribbon which has an opposing pitch moves the material away from the discharge opening
Standard Features

Available in working capacity of 5 liters - 25,000 liters
Available in all grades of stainless steel, carbon steel and special alloy steels
Ribbon agitator for center discharge
Designed for atmospheric operation
Top cover depending on the length of the blender
Centrally located Flush bottom discharge valve
Stuffing boxes with easily disassembled housings. Pure Teflon gland packing provided
Stainless steel surfaces are polished to desired standards. All exterior non-stainless surfaces are painted with enamel paint
Squirrel Cage, Three Phase Induction Motors suitable for 415 Volts, 50 Hz
Worm Reduction Gearbox
Single Speed Drive
Blender is mounted on supports providing adequate discharge clearance
Customized Features

Wear resistant liner plates for abrasive products
Ribbon agitator for multiple discharge positions
Manually or pneumatically operated Butterfly Valve, Slide Gate Valve, Diaphragm Valve, etc. for discharge
Split design stuffing boxes, Air-purging stuffing boxes, Mechanical Seals
Good Manufacturing Practice (GMP) models
Explosion-proof motors, Variable Speed Drives along with Electrical Control Panel
Spraying system for liquid injection
Lump breakers for solids or agglomerates size reduction
Vacuum and pressure construction
Jacket for heating, cooling
Inspection, cleaning windows on the container, cover
Cover openings, Nozzles as required



Model Gross Volume Working Volume Power
Litres Litres H.P
SSE RB 10 10 03/05/11 0.5
SSE RB 50 50 15-20 1
SSE RB 75 75 25-50 1
SSE RB 150 150 70-100 2
SSE RB 250 250 100-150 3
SSE RB 450 450 250-300 5
SSE RB 600 600 350-450 7.5
SSE RB 1100 1100 750 10
SSE RB 1500 1500 1000 12.5
SSE RB 2000 2000 1250 15



Double cone blender

OPERATION

The Double Cone Blender is an efficient and versatile machine for mixing dry powder and granules homogeneously. All the contact parts made out of stainless steel of required grade by customer. Two third of the volume of the Cone Blender is filled to ensure proper mixing. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc.

SALIENT FEATURES

The conical shape at both ends enables uniform mixing and easy discharge.
All contact parts are made out of stainless 304 or 316 quality material, as required by customer.
Maximum care has been taken to ensure safe operation of the unit.
Manual rotating facility with hand wheel for inching. The same will be provided with ss cover & limit switch. ( In 200 Kgs. & above model )
Two nos. of safety road will be provided at back side. ( One LH side & one RH side )
Suitable size of butter fly valve at one end of the cone provided for material discharge & hole with openable cover provided at other end of the cone for material charging & cleaning.
One shaft with 04 nos. of fixed buffels with mirror polished provided inside the cone.
Cone will be mirror polished from the inside & outside & structure will be matt polished.
All moving parts covered with SS304 covers.
Safety guards made from SS304 pipes provided in front of the m/c with limit switch.
Panel fabricated from SS304 material with facility of three phase indication, D.O.L. tarter, digital timer & Amp. Meter.
As per customer requirement machine will be provided with left side drive or with right side drive.
The conical shape at both ends enables uniform mixing and easy discharge.
All contact parts are made out of SS304/316(as per customer requirement) quality material.
Maximum care has been taken to ensure safe operation of the unit.
Worm reduction gear use for speed reduction.
Food grade rubber gasket will be used on both end of cone as well as in butterfly valve.
Inside & outside of the cone will be polished to the mirror finished.
General structure made out of SS304 and Polished to the matt / mirror finish
(as required by you) in GMP Model.
All safety guards & covers made out of SS304 in GMP Model.
Hand wheel will be provided for manual tilting of cone.
Safety guards provided with limit switch to not start the machine when safety guards are not in proper position.

Technical Specification:

Model Gross Cap. in Liters Working Cap. in Liters Discharge Ht. in mm Discharge Valve Overall Dimensions in Length Width Height H.P.
SSE DCB 50 150 100 450 150 1400 800 1500 2
SSE DCB 100 300 200 450 200 1850 900 1900 3
SSE DCB 150 470 300 450 200 2000 1100 2000 5
SSE DCB 200 615 400 450 200 2100 1200 2100 5
SSE DCB 250 770 600 450 200 2200 1300 2200 7.5
SSE DCB 300 1000 600 450 200 2300 1400 2300 7.5



V BLENDER

OPERATION

The "V" BLENDER is an efficient and versatile blending machine for mixing and lubrication process of dry powders homogeneously. Approximate two third of the volume of the Blender is filled to ensure proper mixing. The "V" Blender gives best result for powders due to suitable medium speed and "V" shape of container. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc……
In "V" Blender the powders comes from all sides due to the "V" shape of the product container, hence requirement of RPM is medium. Suitable mainly for powder & granules type material. This type of material gets sufficient continuous movement. Due to the "V" shape of container, have only medium movement and will results in good quality of blending/lubrication of granules

SPECIAL FEATURES

  • Suitable for dry mixing of products in powder form.
  • Easy for loading and unloading.
  • Easy for cleaning.
  • All contact parts are made out of SS304 / SS316 or SS316 L quality material, as per customer requirement.
  • Simple design requires minimum maintenance.
  • General structure & safety guards made out of mild steel & painted in Standard Model and made out of SS304 & polished to the matt finish in GMP Model.
  • The "V" shape gives sufficient contineous movement to the granules, result in good quality.
  • Maximum care has been taken to ensure safe operation of the unit.
  • Manual rotating facility with hand wheel for inching.

OTHER OPTIONS AVAILABLE

  • Vacuum Loading facility for material charging.
  • Flame proof drive motor along with flame proof starter.
  • Contact parts made out of SS316 or SS316 L instead of SS304.

Technical Specification

MODEL Gross Cap in ltrs Working Cap in Ltrs OVERALL DIMENSIONS HP
- - - Length Width Height -
25 50 30 1100 760 1375 1.5
50 100 55 1400 760 1575 2.0
100 200 110 1525 1000 2450 2.5
250 500 280 1850 1100 2770 7.5
500 1000 560 2000 1250 3800 10.0
1000 1850 1200 2300 1400 4200 15.0

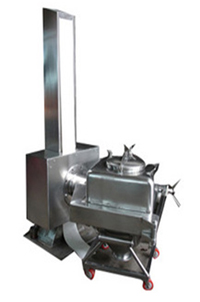

CONTA BLENDER/IPC BIN BLENDER

Description

  • Conta Blending system has replaced completely the conventional blenders like 'V' shape / Double cone or Ribbon type.
  • It is a latest cGMP concept with an emphasis on the dust free transfer of powders and granules at different stages from sizing / dispensing to compression / filing of Tablets or Capsules.
  • The process involves collecting the sized granules in a Container, wheeling it to the Blender, engage the same with clamping system, lift and tumble for the prevalidated time in set number of rotations.
  • Tapasya developed CONTA based on Pharma industries feedback on its Cage Blender which still is a market leader in this segment.
  • Conta Blender has a flexibility of Batch Volume.
  • Varying size of containers can be mounted on a drive console which is equipped which clamping cage.
  • Batch size variation achievable in 500 Kg.
  • Model for example, is from 75 Kg. to 500 Kg. using two different sizes of containers.
  • The mixing efficiency is better than the other type of tumbling blenders like Double Cone, V or Octa as they rotate in a diagonal and in a eccentric plane.
  • It shuffles the product intimately resulting in homogeneous blend within 5-20 min.

Salient Features

  • 0 stopping for easy docking and undocking of the bin.
  • A suitable fencing around the cage with an entry point for the bin on detachable trolley.
  • Limit switch on entry door to prevent the accidental operation of the cage.
  • Flexibility of accepting variable bin sizes providing wide range of batch volumes.
  • cGMP construction with cladded polished S. S. sheets.
  • The charging hole with cover is provided on top with quick opening and closing arrangement with dust proof joints for particle free transfer.
  • Built-in Butterfly valve (150 mm dia) at the bottom suitable for discharge.
  • Suitable leak proof vent on top.
  • Capacity available 2 to 1000 Kgs.

Advantages

  • Highly effective for low volume active blending with as low as 1 % active.
  • Processing of different sizes of production batches in single equipment with scale up data.
  • Dust-free operation in solid dosage processing area.
  • No risk of De-blending on extended processing.
  • Containerised transfer of processed material avoiding manual scooping.
  • No Cleaning down time as the product container is mobile.

Application

  • Blending of dry powder for capsules
  • Blending of dried granules for tablets
  • Closed system containment of processed powders/granules
  • Single step transfer from Drying to Compression/Filling equipments with reduced material handling.
OCTAGONAL BLENDER

We are a prime Octagonal Blender Manufacturer, Exporter and Supplier from Mumbai, Maharashtra. The Octagonal Blender, offered by us, is widely used in the Pharmaceutical Industry. Furthermore, our Octagonal Blender is highly acclaimed by the national as well as international clients for its efficiency.

Features

  • Discharge out put via. Butter fly valve. (Pneumatic discharge can be provided)
  • Safety guards provided with limit switch interlocked to motor which ensures safe operation
  • Bump less rotation assured because of specially designed transmission chain sprocket
  • All the contact parts made of SS 316 as per GMP standard
  • Zero retention design
  • To enhance the mixing, baffles are provided on central shaft
  • Internal finish confirming 220 grits to 320 grits, outside mat finish180 grits
  • Charging drum arrangement with Mechanical / hydraulic trolley
  • Safe earthing system
  • Optional Accessories/ Attachments
  • Flame Proof Construction
  • PLC with MMI
  • VFD

Applications

  • Blending of dried granules for tablets
  • Blending of dry powders for capsules

Documentation

  • Documentation like DQ, IQ, OQ and FAT provided with the machine

Technical Specifications

Model SSE OB - 10 SSE OB - 30 SSE OB - 50 SSE OB - 100 SSE OB - 200 SSE OB - 300 SSE OB - 400 SSE OB - 600 SSE OB - 750 SSE OB - 900 SSE OB - 1250 SSE OB - 1500
Gross Volume in Ltrs 10 30 50 100 200 300 400 600 750 900 1250 1500
Working Volume in Ltrs 6 20 35 70 135 200 265 400 500 600 800 1000
Motor (HP) 0.5 0.5 1.0 1.0 1.0 1.5 1.5 2.0 2.0 3.0 5.0 5.0
Gear Box 1 ¾" 1 ¾" 2 ¼" 2 ¼" 2 ¼" 3" 3" 3" 3 ½" 4" 4" 5"
