Milling Machine
Multi Mill
Model CIMM-200
*Output 50 to 200 Kgs. / Hr.
Rotor Assembly Diameter 250 mm Approx.
Rotor Speed 750 / 1500 / 2300 / 3000 RPM
Beaters 12 Nos. knife and impact edges and 2 Nos. scraper blades
Screen dimension Inner Diameter 260 mm / Height 135 mm
Motor 3 Hp / 1440 RPM / 440 V. / 50 Hz. AC
Starter "DOL" with reversible switch
Material charging height 1445 mm
Material discharging height 730 mm
Net weight (Approx.) 275 Kgs.
Gross weight 425 Kgs.
Machine Dimensions 870 (L) x 965 (B) x 1630 (H)
Case Dimension 1200 (L) x 1550 (B) x 1860 (H)

APPLICATIONS

Multimill is widely used for wet and dry granulation, pulverisation etc. in Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colours, Dyestuff, Food products etc. It also finds application in Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastic and Resins Industries.

DESCRIPTION

Multi Mill unit consists of S.S. 304 quality hopper and processing chamber (can be provided is S.S. 316 quality at extra cost) with beaters assembly, motor, reversible switch, DOL starter, four speed step pulley, Suitable screen with painted pillar mounted on base plate, with castors.

OPERATION

Multimill operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction.
Material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in the container kept below the processing chamber.
Output and quality of the final product depends on three main factors
Shape of beaters (knife/impact edges),
Speed and Screen.

SALIENT FEATURES

  • Direction of beaters can be changed by reversible switch from knife to impact forward and vice-versa.
  • All contact parts can be easily and quickly dismantled and cleaned.
  • Multimill Machine is designed for continuous operation.
  • Cylindrical screen for higher output.
  • Castors provided for mobility.
  • Flame proof electricals can be provided at extra cost.
  • Beaters and scrapper blades of SS 410 quality are hardened and hard chrome plated.

Technical Specification

Turbo Sifter

Turbo Sifter is used to sieve dry raw material in powder form before it is fed to Rapid mixer & wet granulator or High shear mixer.

The Turbo Sifter is suitable for separation of foreign objects from dry powder before mixing, One can use mesh size from 4 to 25. this machine is used for mainly screening the formulations (in form of dry powder) before feeding it in to the high shear mixer or Fluid bed granulator.

Turbo Sifter can also be mounted on castor wheel for mobility. Entire assembly and sieves can be removed for cleaning very easily.

Capacity

  • 400 kg/hour depending upon the physical properties of the product.

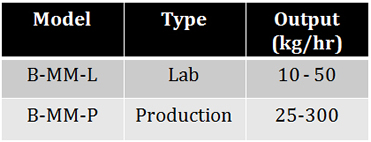

Co Mill
  • Flexibility in charging – manual / mechanical / pneumatic
  • Easy, precise, reproducible setup
  • Quick screen change
  • High reliability – conforms to no rubbing between rotor & screen
  • Rotor drive housing segregated - eliminates risk of product contamination
  • Adjustable discharge height
  • Rotor / Sieve adjustable gap
  • PLC Integrated
  • Applications :
         - De-agglomeration
         - Granulation (Wet)
         - Size reduction
         - Sieving
    • Output – 200 kg/hr
