POWDER/PRODUCT TRANSFER SYSTEM

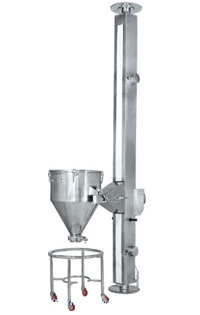

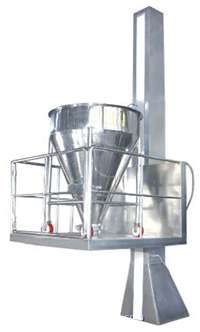

Lifting & Postioning Device/IPC Lifter
The precision and easy operations of our Fluid Bed Dryer have named us as the best Manufacturer, Exporter and Supplier in India. The Fluid Bed Dryer, offered by us, is ideal for the rapid and even drying of chemical, pharmaceutical and food products. Our Fluid Bed Dryer is available at the market leading prices.
Description
  • ELEVATOR is custom designed to lift and position any type of container.
  • These units are constructed using various standard assemblies which offers individual solution to each application of solid dosage manufacturing and also for liquid compounding operation.
  • This system is evolved to achieve dust free transfer of in-process materials enhancing cGMP standard, and simultaneously eliminating laborious manual operation.
  • Elevator operates by engaging the container to a semi circular / single hook / fork type / platform, lift arm attached to a column.
  • The container is then raised or lowered by hydraulic system with built in safety parameters.
  • The four point contact bearing on the column base with a low resistance factor makes it possible to position loaded container by hand radially, to discharge the contents in the process equipments.

Special Features

  • Closed Column construction with floor and ceiling fastening, also available in self standing pivoted execution
  • Material of construction is SS clad MS column/SS column
  • Adjustable mount stop.
  • Double acting in-house manufactured Hydraulic Cylinde with 3 stage Fail safe seals.
  • The cylinder is designed for an operating pressure of 100 BAR.
  • Hose burst protection system installed on the Cylinder making it fail safe
  • Solid Machined trolley made out of 30 MM Machined
  • 2 nos 8 MM SS 304 Wire ropes instead of chain.
  • Lift Lock for safety provided.
  • Imported Mono Block Power Pack zero maintenance.
  • All control Cabling and rigid piping included with the machines.Due to Rigid Piping chances of leakages are eliminated.
  • CE Certified meeting 19 EN specifications.
  • Meeting all European Safety standards.
  • Provision for the Vibratory Sifter/Mill to be electrically connected is Built-in.
  • Thus eliminating the cables running on the floor.
  • Better safety and GMP.

Options On Request

  • All parts in Stainless Steel.
  • Special column height ( > 4 mtrs), Free standing (rigid) design. , Customized designs, Mobile Design for upto 100 Kgs. load, Charging of : Sifters RMG (SAIZONER)
  • Compression Machine
  • Blister Packing Machine
  • Blenders
  • Strip Packing Machine
  • Mixing Vessels

APPLICATIONS

  • Charging of : Sifters
  • RMG (SAIZONER)
  • Compression Machine
  • Blister Packing Machine
  • Blenders
  • Strip Packing Machine
  • Mixing Vessels
FBD Bowl Tilting Device/FBD Tipper
Device/FBD Tipper

Elevator is custom designed to lift units and position any type of Storage Bin.

These units are constructed using various standard assemblies which offer

individual solution to each application of solid dosage manufacturing and also

for liquid compounding operation. This system is evolved to achieve dust free

transfer of in-process materials enhancing cGMP standard, and simultaneously

eliminating laborious manual operation.

Salient Features

  • Closed column construction with floor and ceiling fastening pivoted execution
  • MOC – stainless steel clad MS column/SS column
  • Adjustable mount stop

Application- Charging of

  • Sifters
  • RMG
  • Compression Machine
  • Blister Packing Machine
  • Blenders
  • Strip Packing Machine
  • Mixing Vessels

Options On Request

  • All parts in stainless Steel
  • Special column height (>4 mtrs)
  • Free standing (rigid) design
  • Customized design
  • Mobile Design for up to 100 Kgs. Load
Powder Transfer System

We manufacture and supply a wide range of Powder Transfer System that is considered more useful than conventional systems. Used to transfer dispense powders, our range is known to offer maximum benefit in the prevention of explosion or hazards of flammability.

Our innovative range of Powder Transfer System is known to offer numerous advantages over conventional systems, particularly in the charging of pressure vessels.

Features:

  • Used for products with difficult flow characteristics
  • Reliable method to safely transfer and dispense powders
  • Benefit in the prevention of explosion
  • Benefit in the prevention of hazards of flammability

PACKING CONVEYOR

We are engaged in offering Packing Conveyor Belt that is manufactured from quality components and using latest technology. The Packing Conveyor Belt is highly appreciated for its high performance and durability among the clients. Further, the Packing Conveyor Belt can be availed in various specifications as per the requirement.

Salient Features

  • Structure is made of S.S. 304, 30mm sq. pipe, 16 SWG with matt finish
  • A/c frequency variable drive
  • Belt alignment system for long life and straight running of belt
  • Direct gear drive
  • Length can be made as per customer requirement
  • S.S. elegantly matt finishing
  • Adjustable height of conveyor belt, to align with other machine of the line
  • Self-alignment bearing for easy maintenance
  • Rigid vibration free construction for trouble free performance
  • Special type adjustable angle at initial of conveyor for strip or blister packing (optional)

Note : Packing conveyor belts are also available in variable lengths widths, single side belt double side belt, variable lengths up to 24 ft. and more as per customer requirement.

Specifications

Model No. SSE PC-8 SSE PC-10 SSE PC-12
Direction of
Movement
Left to Right Left to Right Left to Right
Speed 7 Mtr./Min up to 12 Feet Long OR Variable 7 Mtr./Min up to 12 Feet Long OR Variable 7 Mtr./Min up to 12 Feet Long OR Variable
Power
Characteristics
0.5 HP/220 V/50 Hz up to 12 feet long 0.5 HP/220 V/50 Hz up to 12 feet long 0.5 HP/220 V/50 Hz up to 12 feet long
Height of
Conveyor
860 mm to 910 mm 860 mm to 910 mm 860 mm to 910 mm
Belt width 9" or 12" as per requirement 9" or 12" as per requirement 9" or 12" as per requirement
Belt Details PVC, endless 2 ply sandwich, 2mm thickness (Optional Slate Chain in S. S. or Delrin instead of PVC Belt) PVC, endless 2 ply sandwich, 2mm thickness (Optional Slate Chain in S. S. or Delrin instead of PVC Belt) PVC, endless 2 ply sandwich, 2mm thickness (Optional Slate Chain in S. S. or Delrin instead of PVC Belt)
Washing
