WASHING SYSTEM
IPC Bin
  • Bin (IPC) is a container made from SS 316 sheets having cylindrical Body and taper bottom.
  • A lid is provided on top. The lid is big so that complete washing the IPC is easy.
  • The Bin is seated on a detachable stand or fixed leg made of SS 304 pipe stand, having forelegs and each leg is fitted with heavy duty castor wheel of special design with ball bearing and SS side frame (2 nos. fixed and 2 Nos swiveling).
  • Bin (IPC) are used for handling, storing, transporting and mixing of pharmaceutical powders and granules before, between and after various processes.
  • They are designed and manufactured to be handled through their own trolley and offer the advantage to leave the trolley at floor when the container is raised up to be positioned onto Universal bin handling and stacking system for easy automated handling and stacking of bins
  • Charging through the top opening.
  • Discharging through bottom discharge butterfly valve.
  • Without any nooks and corners for easy cleaning with food grade silicon gaskets.
  • Mirror finish from inside and adequate hopper angle for easy and complete discharge of products
  • Option for various type of IPC Bin as per customer requirement.
  • Simple & Convenient Operation, Changeover, Cleanliness, Operator Protection & Ease to Maintenance.
  • Capacities from 30 Kg/Hr to 1200 Kg/Hr Industrial Productions.
  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • Product contact parts AISI 316/ 316L & non contact parts AISI 304

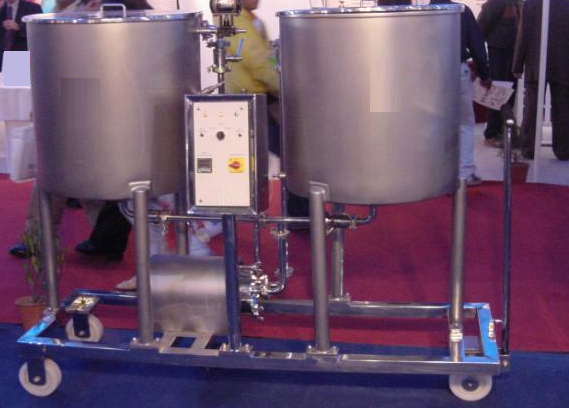

CIP System

Cleaning of complete items of Plant Equipment automatically without dismantling or opening the equipment. Process involves Circulation of Cleaning Solution(Detergent or Cleaning Solution) through the system, to be cleaned. CIP done through Jetting/spraying of surfaces under conditions of increased Turbulence and Flow Velocity.

Thermal Energy (Temperature of Cleaning Fluid)
Application of suitable Pipeline Velocity/Pressure (Kinetic Energy)

SIP System

We design  CIP and SIP Systems after  understanding your process.  We understand how critical the cleaning and sanitization of equipments are for your process and product batches.  That is why our CIP and SIP Systems are fully automated (or manual-Option) and ensure that you do not have to disturb the integrity of the equipment that is to be cleaned. Our CIP and SIP Systems connect easily without any major assembly or disassembly. Apart from Pharmaceuticals & Biotechnology our CIP and SIP Systems can be installed in Food, Diary, Beverage, Neutraceuticals,  Breweries etc.

The following are the features of our CIP - SIP Systems:

  • All contact surfaces are SS316 and Electropolished
  • Pre-wired, Pre-programmed PLC based menu
  • Designs to meet USFDA, FDA standards
  • Single or Multiple Tank Systems
  • SS Skid mounted systems
  • Optimized cleaning times
  • High efficient cleaning
  • Data Logging capabilitie
