Wet Mixer
Mass Mixer
The Mass Mixer Machine is basically mixing a assembly wherein the mixing stirrer is in horizontal position in the container & have a single speed, simple rotation. The stirrer rotates around it self at a very slow speed inside the bowl and thereby achieving intimate mixing of dry or wet materials of Tablet Granulation, Powder, Chemicals, Food & Confectionaries Materials. Because of a special design feature of machine & stirrer, the mass mixer can be mix the sticky materials & also uniformally and intimately mix the materials which are to be difficult to mix.

Specifications

  • Range of models to suit working volume 50,100 & 200 Kgs. At bulk density of 0.50 gms/cc
  • All contact parts are made out of S.S.304 quality material. (SS316 provided on demand on extra cost)
  • Compact design requires comparatively smaller floor space
  • Single stirrer with single speed for dry & wet mixing



Features

  • Suitable for mixing of dry & wet material
  • All contact parts in stainless steel
  • Paddles so arranged on the shaft to give thorough uniform mixing
  • Tilting arrangement, reversible switch and safety switch to stop the mixer as soon as the cover is opened
  • The drive is through a system of suitable gear-box and motor



Ideal For Mixing of

  • Pharmaceutical powders
  • Chemicals
  • Food and confectioneries items



SPECIFICATIONS

Capacity 50 Kgs 100 Kgs 150 Kgs 200 Kgs
Over Flow Capacity 110 Ltrs 220 Ltrs 330 Ltrs 440 ltrs
Working Capacity 88 Ltrs 156 ltrs 234 Ltrs 309 Ltrs
Motor, 440V,3Ph,50 CS,AC 3HP 5HP 7.5HP 7.5HP
Approx Dimensions mm Depth in 1700 2030 2135 2260
Height in 940 1120 1300 1300
Width in 740 635 790 790



RIBBON BLENDER

Ribbon Blender comprises of a U-shaped horizontal trough and a specially designed Double Helical Ribbon Agitator rotating within. Ribbon Blenders are based on a proven agitator construction that provides a triple mixing action ensuring fast, efficient blending. The dimensions and configuration of the ribbons are carefully balanced to provide a movement of material within the container that avoids dead spots and gives rapid product discharge.

An alternate design is the paddle agitator. The paddles are positioned to move the material in opposing lateral directions as well as radially. The paddle design is generally employed where friable materials are being blended, and when batches as small as 15% of the total capacity are going to be mixed in the blender.

Used For

  • Pharmaceuticals
  • Food products
  • Chemicals
  • Cosmetic products

Design Highlights

  • The outer ribbon displaces the material from the ends to the center while the inner ribbon moves the material from the center to the ends. This counter-current action results in homogenous blending
  • The ribbons rotate at approximately 70 - 100 meters per minute and move the material both radially and laterally to ensurethorough blends in short cycle times
  • Triple Mixing Action - The Key to Fast, Efficient Blending
  • As the agitator rotates, the material is tumbled and carried radially around the inside of the blender
  • The pitch of the outer ribbon moves the material toward the discharge opening
  • The inner ribbon which has an opposing pitch moves the material away from the discharge opening

Standard Features

  • Available in working capacity of 5 liters - 25,000 liters
  • Available in all grades of stainless steel, carbon steel and special alloy steels
  • Ribbon agitator for center discharge
  • Designed for atmospheric operation
  • Top cover depending on the length of the blender
  • Centrally located Flush bottom discharge valve
  • Stuffing boxes with easily disassembled housings. Pure Teflon gland packing provided
  • Stainless steel surfaces are polished to desired standards. All exterior non-stainless surfaces are painted with enamel paint
  • Squirrel Cage, Three Phase Induction Motors suitable for 415 Volts, 50 Hz
  • Worm Reduction Gearbox
  • Single Speed Drive
  • Blender is mounted on supports providing adequate discharge clearance

Customized Features

  • Wear resistant liner plates for abrasive products
  • Ribbon agitator for multiple discharge positions
  • Manually or pneumatically operated Butterfly Valve, Slide Gate Valve, Diaphragm Valve, etc. for discharge
  • Split design stuffing boxes, Air-purging stuffing boxes, Mechanical Seals
  • Good Manufacturing Practice (GMP) models
  • Explosion-proof motors, Variable Speed Drives along with Electrical Control Panel
  • Spraying system for liquid injection
  • Lump breakers for solids or agglomerates size reduction
  • Vacuum and pressure construction
  • Jacket for heating, cooling
  • Inspection, cleaning windows on the container, cover
  • Cover openings, Nozzles as required

SPECIFICATIONS

Model Gross Volume Working Volume Power
Litres Litres H.P
SSE RB 10 10 03/05/11 0.5
SSE RB 50 50 15-20 1
SSE RB 75 75 25-50 1
SSE RB 150 150 70-100 2
SSE RB 250 250 100-150 3
SSE RB 450 450 250-300 5
SSE RB 600 600 350-450 7.5
SSE RB 1100 1100 750 10
SSE RB 1500 1500 1000 12.5
SSE RB 2000 2000 1250 15
Planetary Mixer

Planetary Mixer : This equipment is basically a mixing assembly where the agitation pattern is of the planetary nature The beater or the agitation assembly rotate around itself as well as travel in a circle in the bowl thereby achieving intimate mixing. Because of special design feature of shifting the mass is uniformly and intimately mixed.

The planetary mixer unit consists of Bowl SS Cylindrical bowl with torrispherical dished bottom with inside surface polished to smooth finish. MS Jacket on cylindrical and torrispherical area to operated on 3 Kg / cm sq. Steam pressure Complete with steam inlet and cold water inlet and outlet connections with standard fitting like pressure gauge, vent cock, release valve and drain. Bowl also suitable for vacuum application and fitted with 3 nos. Of castor wheel, two fixed and one swivel type. Suitable locking lugs for fixing bowl to the machine.

Top Dish : SS top dish for covering the bowl with SS flange having groove for fixing the sealing gasket. Necessary connection with serrated nozzle provided for connecting flexible pipe for vacuum application Light and sight glasses suitably provided.

Agitator Assembly

  • Range of models to suit working volume 50,100 & 200 Kgs. At bulk density of 0.50 gms/cc
  • All contact parts are made out of S.S.304 quality material. (SS316 provided on demand on extra cost)
  • Compact design requires comparatively smaller floor space
  • Single stirrer with single speed for dry & wet mixing

Drive Mechanism For Beater

Consist of the following

  1. Suitable HP 1440/2880 RPM DUAL Sped TEFC Motor to work on 415 V, 50 c/s 3 Phase AC supply line, mounted on MS plate.
  2. Worm reduction gear box coupled to the motor through belt and pulley arrangement.
  3. Epicyclic gear box coupled to the motor through belt and EPICYCLIC gear train arrangement to achieve planetary motion.
  4. Suitable HP 1440 RPM TEFC motor to work on 415V 3 phase 50 C/s AC supply line for High Shear Emulsifier. ( optional )
  5. The above item are assembled on the top plate which is supported on a Cast iron sliding sleeve with MS gussets.

Main Body : MS column with flange mounted on stool base 2 nos limit switches provided at upper and lower limits of the column to control traverse of the sleeve.

Lifting Arrangement Of The Drive Assembly (Mechanical) : Consist of

  • Suitable HP, 1440 RPM motor working on 415V 50 c/s 3 Phase AC supply line.
  • Worm reduction gear box coupled to the motor through belt and pulley arrangement.
  • MS STOOL for mounting the reduction gear unit.
  • Lead screw and guide bar to guide up and down traverse of the drive assembly.

Lifting Arrangement Hydraulic (Optional)

  • Horse shoe base with suitable gun metal bush housing for 3nos chrome plated guide bars with suitable retaining plate and supports.
  • Hydraulic Power pack assembly complete with MS. Tank, suitable HP pump with filter connected to suitable solenoid valve arrangement with control and check valve for preventing dropage of pressurized fluid.
  • Power Pack connected with fixed / flexible high pressure inter connecting hose to hydraulic cylinder of suitable lift clamped to the drive head to give smooth up and down traverse.
  • Limit switch for controlling up and down traverse motion.
  • Control Panel.
  • Air break DOL dual speed starter with DOL relay for main motor.
  • HRC back up fuses.
  • Ammeters for main motor and lift motor.
  • Push Button actuator for above operation fitted on control panel.
  • The circuit consist of mcbs, relays and contactors is series. Ample overload protection is provided by The MCBs and the relay.
  • Wires coming out of the connections are numbered for easy recognition.

Finish All SS parts polished to smooth pharmaceutical finish. All MS part painted to smooth finish

Options Available Provided

  1. Unit with FLP motors and FLP push button station but non FLP panel to be mounted outside FLP area
  2. Unit in SS 316
  3. Unit in SS304 cladding for GMP model
  4. Jacketed bowl for steam / electrical heating

Technical Specification

GROSSCAPACITY WORKINGCAPACITY LIFTING MOTOR H.P MAIN MOTOR H.P. RPM PLANET/BEATER SPACE REQUIRED H X L X B
30 20 - 2 20-40/60-120 1220 X 640 X 520
65 50 - 3 20-40/60-120 1500 X 900 X 600
125 100 - 3 20-4060-120 1650 X 1020 X 650
230 200 1 5 18-36/54-108 2300 X 2100 X 1500
280 250 1 7.5 18-36/54-108 3000X2900X1400
375 350 1.5 10 12-24/36-72 2400X2300X1300
550 500 2 15 12-24/36-72 2700X2600X1250
675 600 2 15 12-24/36-72 3000X2800X1300
Rapid Mixer Granulator

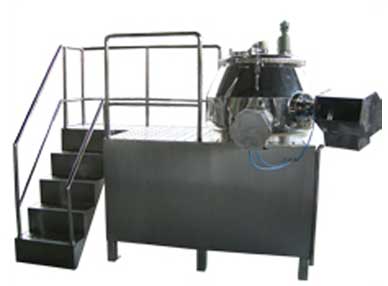

Our Rapid Mixer Granulator is designed to achieve excellent mixing and consistent granules at lower operating cost along with higher productivity. The High Speed Mixer Granulator manufactured bys us has better mixing and closed control of granule size leading to faster tableting speeds with improved quality and least rejections. The perfection and easy operations of our products makes us the apex Industrial Rapid Mixer Granulator Manufacturer.

Salient Features

  • All contact parts are made out of S.S.316 as per GMP standard.
  • Three blades Design for efficient mixing with a high speed granulator (chopper) is inserted horizontally through the wall of the bowl to assist blending of powder and to break the product to granules of required size.
  • Platform is SS 304 which is dimpled for anti slip property entire stand is also  cladded by SS 304 to make the machine total GMP.
  • Chopper housing is entirely made from SS 304 having air purging and special seals. Discharge piston has face sealing matching the vessel interior.
  • Two stage housing for main impeller eliminating totally any chance of cross contamination between bearing grease and product mix.
  • Lifter can be fitted for loading of material.
  • 5 microns filter assembly will be provided on top lid in stainless steel housing to eliminate dusting in granulation area.
  • All Electrial & pneumatic parts are pre wired to simplify installation.
  • Discharge can be provided on either side to suit client’s requirement.
  • Optional Accessories / Attachments.
  • PLC with touch screen MMI with printing facility.
  • VFD can be provided to change the RPM of impeller .
  • WIP system.
  • Flame proof Construction.
  • Online co-mill arrangement.
  • Steam jacketed Bowl.
  • Blinder charging with dosing pump.
  • Emergency push button station at discharge.
  • Granulation end point detection.

Safety

  • Proximity switches are provided on main lid and discharge valve interlocked with central control system for safe operation.
  • Equipment air and purging air control via differential air switches.
  • Location of the FBD bowl at discharges i.e. FBD bowl touch the proximity sensor then discharge will open.

Documentation

  • Elicon Rapid Mixer Granulator comes along with all documentation like DQ, IQ,OQ and FAT as a part of standard procedure.

Standard Processing Duration

Dry mixing 3 to 5 minutes
Wet mixing 5 to 10 minutes
Wet granulation 5 to 10 minutes
Discharge 1 to 1.5 minutes

Technical Specifications

Model SSE RMG-25 SSE RMG-50 SSE RMG-100 SSE RMG-150 SSE RMG-300 SSE RMG-400 SSE RMG-600 SSE RMG-750 SSE RMG-900 SSE RMG-1200
Gross Cap.(ltrs) 25 50 100 150 300 400 600 750 900 1200
Working Cap.(ltrs) 17 35 80 120 240 320 480 600 720 900
Main Motor (H.P.) 3/5 5/7.5 7.5/10 10/15 20/30 30/40 40/50 40/50 40/50 50/60
Chopper Motor(H.P) 1/1.5 1/1.5 2/3 3/5 3/5 5/7.5 5/7.5 5/7.5 5/7.5 7.5/10
Width mm 1000 1050 1800 1800 2150 2400 2650 2700 2700 2800
Length mm 1450 1700 2600 2600 2850 3000 2150 3200 3200 3500
Height (h1)mm 1350 1400 1800 1800 2150 2200 2500 2600 2700 2800
Height with lid (h2) mm 1600 1700 2500 2500 3050 3150 3500 3700 3800 3900
Weight kg 900 1000 1500 1700 2200 2400 2800 3300 3500 4000
Sigma Mixer

swami samarth engineering offers the most extensive and innovative line of horizontal mixers and kneaders used for mixing powder, dough, cream, batter, paste, sludge, slurries and granules for various applications such as the baking industry, pharma, ceramics, sealing compounds, metal powder, adhesives, brake lining, confectionery, carbon black, ceramic powders, grease, magnetic tape coatings, silicone rubber, soap & detergent.

Our mixers are designed and manufactured by the industry's leading talent right here at Chennai. We develop technology that not only makes the mixing process more consistent, but also minimizes downtime through maintenance-free and enhanced sanitation designs.

Available in following sizes:

  SIZE CAPACITY POWER
L x B x H Litres H.P.
9” x 6” x 6” 5 1
12” x 9” x 9” 10 3
14” x 12” x 12” 25 5
18” x 15” x 15” 50 10
24” x 18” x 18” 125 15
30” x 24” x 24” 250 20
36” x 30” x 30” 500 30
